Compact, quiet, and energy-efficient storage
| CPU Model | Realtek RTD1619B |
| CPU Quantity | 1 |
| CPU Cores | 4 |
| CPU Threads | 4 |
| CPU Architecture | 64-bit |
| CPU Frequency | 1.7 GHz |
| System Memory | 1 GB DDR4 non-ECC |
| Notes | Snapshot Replication is available from DSM 7.2-64570. |
| Drive Bays(See all supported drives) | 2 × 3.5" SATA HDD or 2.5" SATA SSD |
| Hot Swappable Drive* | - |
| RJ-45 1GbE LAN Port | 1 |
| USB 3.2 Gen 1 Port | 2 |
| Size (Height × Width × Depth) | 165 mm × 100 mm × 225.5 mm |
| Weight | 0.88 kg |

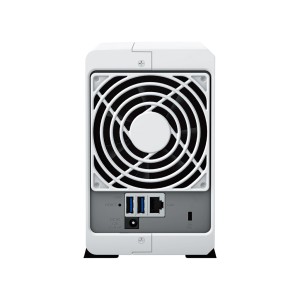

| System Fan | 92 mm × 92 mm × 1 pcs |
| Fan Speed Mode | Full-Speed ModeCool ModeQuiet ModeLow-power Mode |
| Noise Level | 18.2 dB(A) |
| Power Supply Unit / Adapter | 60 watts |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption | 16.31 watts (Access)4 watts (HDD Hibernation) |
| British Thermal Unit | 55.62 BTU/hr (Access)13.64 BTU/hr (HDD Hibernation) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Operating Humidity | 8% to 80% RH |
| Storage Humidity | 5% to 95% RH |
| Maximum Single Volume Size | 108 TB |
| Maximum Internal Volume Number | 64 |
| Supported RAID Type | Synology Hybrid RAIDBasicJBODRAID 0RAID 1 |
| RAID Migration | Basic to RAID 1 |
| Volume Expansion with Larger HDDs | Synology Hybrid RAIDRAID 1 |
| Internal Drives | Btrfsext4 |
| External Drives | Btrfsext4ext3FAT32NTFSHFS+exFAT |
| File Protocol | SMBAFPNFSFTPWebDAVRsync |
| Maximum Number of SMB Connections (FSCT-Based) | 5 |
| Maximum Local User Accounts | 256 |
| Maximum Local Groups | 64 |
| Maximum Shared Folder | 64 |
| Maximum Shared Folder Sync Tasks | 2 |
| Syslog Events per Second | 200 |
| Supported Protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
| Supported Browsers | ChromeFirefoxEdgeSafari |
| Supported Language | English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文 |
| Maximum Concurrent Download Tasks | 80 |
| Maximum iSCSI Target Number | 2 |
| Maximum LUN | 4 |
| Maximum Snapshots per Shared Folder | 128 |
| Maximum Snapshots per LUN | 32 |
| Maximum Snapshots per System | 1,024 |
| Maximum Replication Tasks for Shared Folders | 16 |
| Maximum Replication Tasks for LUNs | 8 |
| Maximum Replication Tasks per System | 16 |
| Default Licenses | 2(Additional cameras require purchase of licenses) |
| Maximum IP Cameras and Total FPS (H.264) | 1080p: 12 channels, 360 FPS3M: 12 channels, 300 FPS5M: 12 channels, 150 FPS4K: 11 channels, 110 FPS |
| Maximum IP Cameras and Total FPS (H.265) | 1080p: 12 channels, 360 FPS3M: 12 channels, 360 FPS5M: 12 channels, 350 FPS4K: 12 channels, 200 FPS |
| Maximum Number of Users | 5 |
| Maximum Number of Hosted Files | 100,000 (applies to files indexed or hosted bySynology Drive. For file access through other standard protocols, refer to the File Services section above) |
| Maximum Connections | 2 |
